0.001 MM Electronic Outside Micrometer 0-25 MM With Extra Large LCD Screen Digital Micrometer Electronic Digital Caliper Gauge

$208.01

$0.00 $208.01

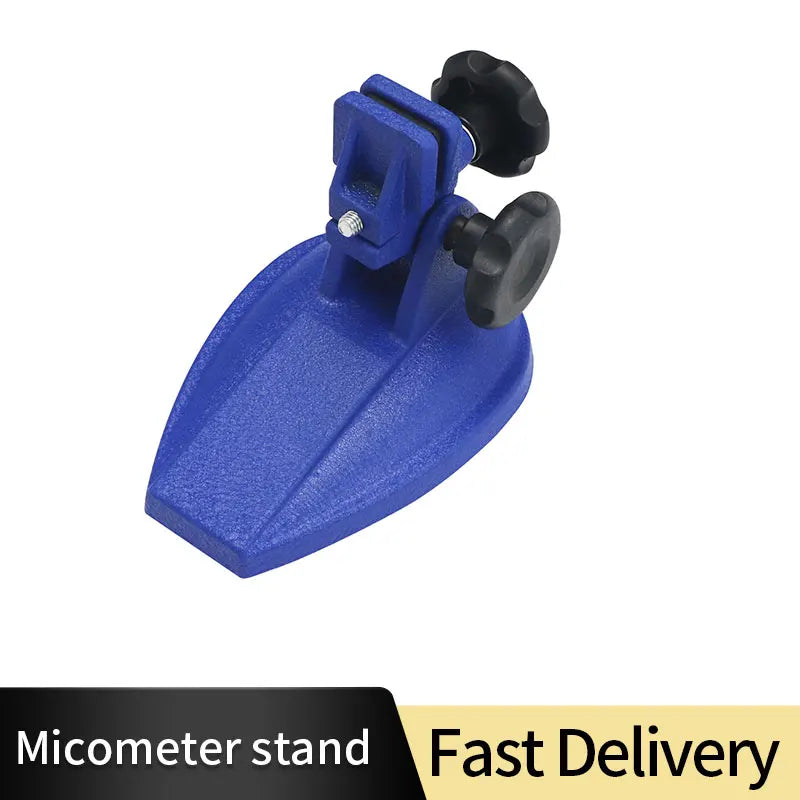

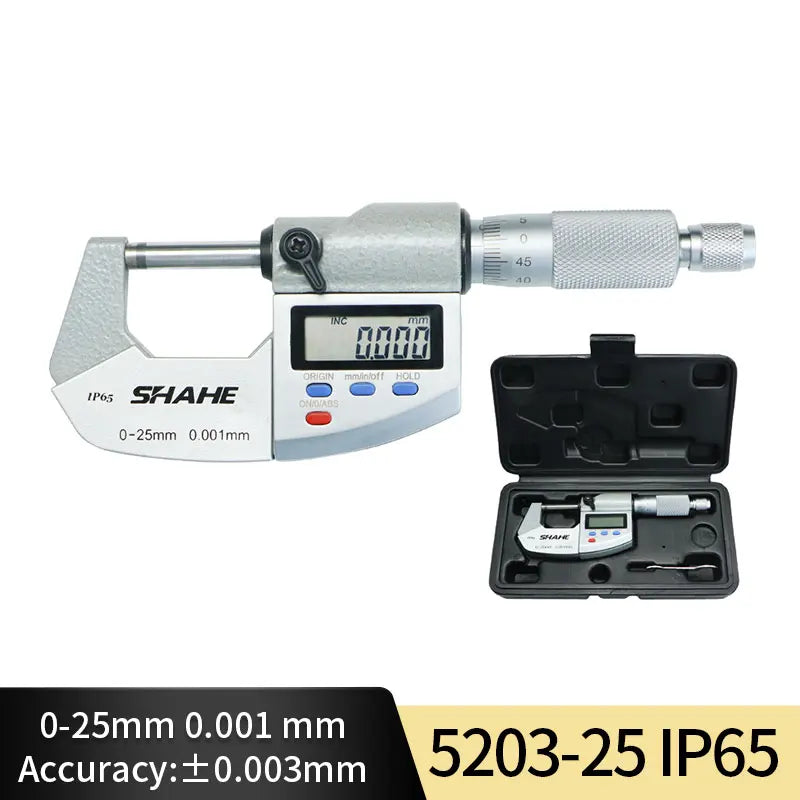

Color 0-25mm IP65 25-50mm IP65 50-75mm 75-100mm 0-25mm 25-50mm stand 50-75mm IP65 75-100mm IP65

Description

SPECIFICATIONS

Accuracy: 0.01mm,-0.003mm

Battery: 3V CR2032 environmental lithium battery, battery life >1 year

Brand Name: Shahe

Certification: NONE

DIY Supplies: Metalworking

Delivery: 1-2 business days after order confirmation

Display Type: DIGITAL

High-concerned chemical: none

Measuring Range: 0-25mm

Measuring force: 5-10N

Micrometer Type: Outside Micrometers

Model Number: 5202-25

Operation temperature: 0-40degree

Origin: Mainland China

Package: Plastic Box

Power consumption: less than20uA

Resolution: 0.001mm

Semi-finishedproduct: No

Storage temperature: 0-20-60degree

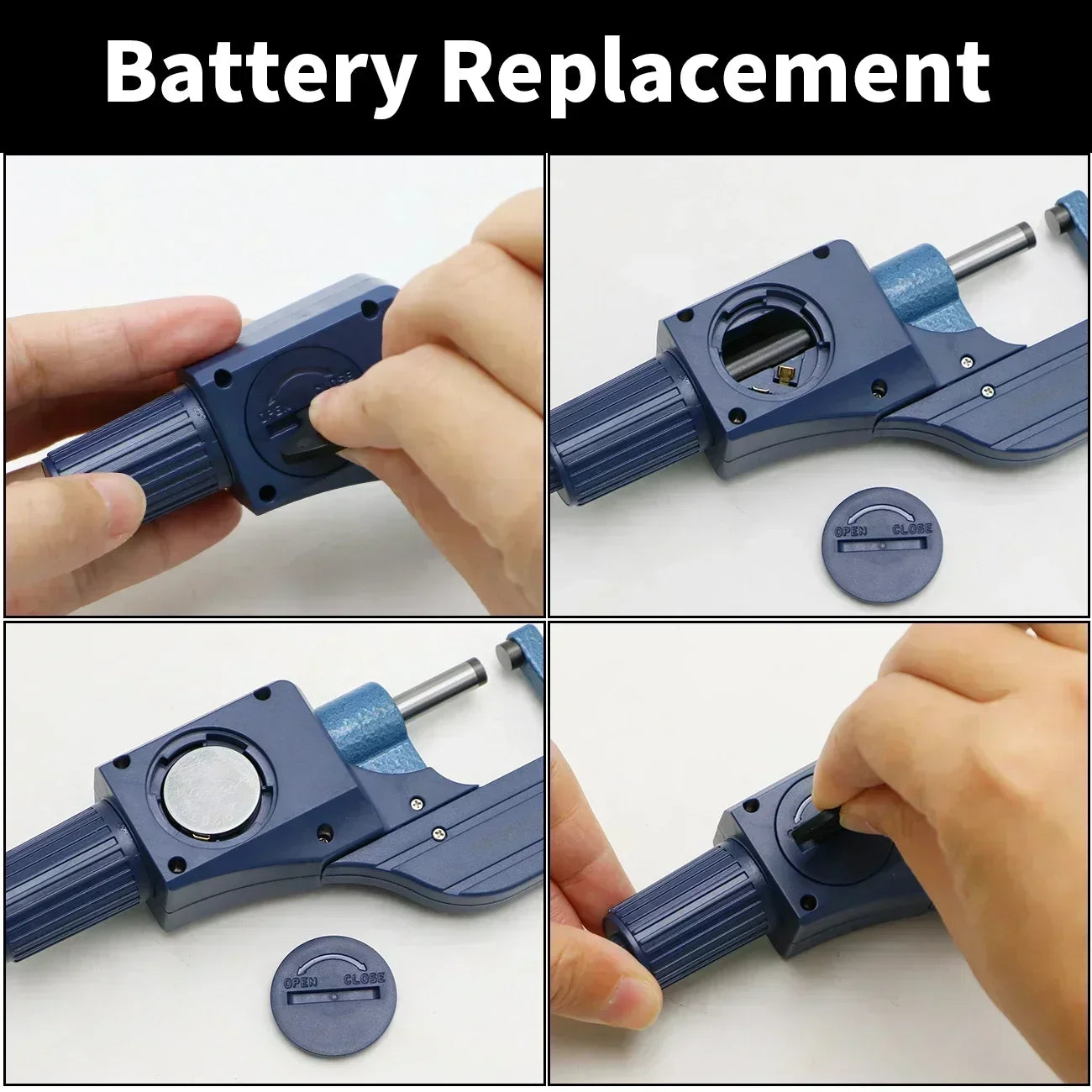

Note: The parcel will be sent without battery from China,battery type is one piece 3V CR2032 environmental Lithium battery

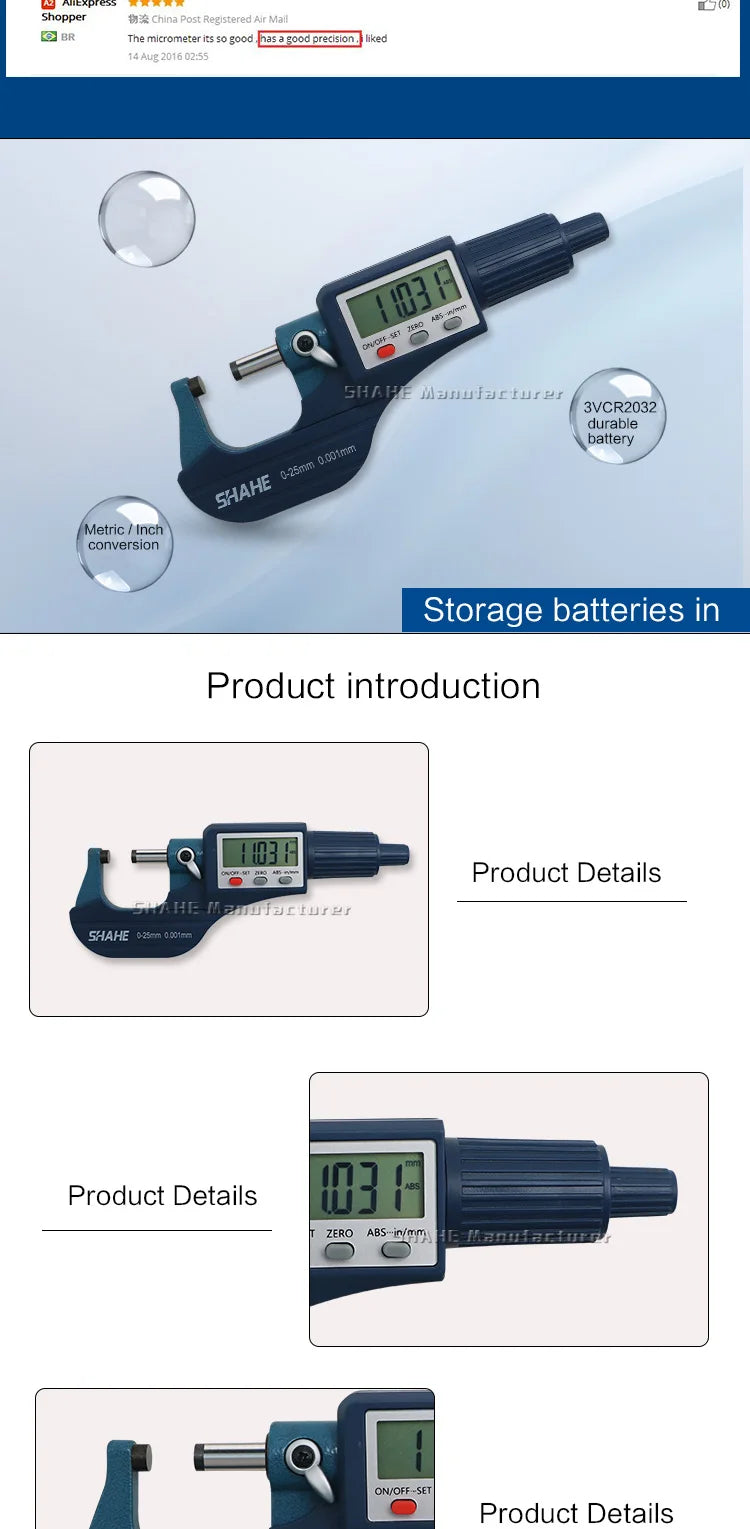

Characteristic and Function

1.Carbide anvil,durable
2.Large LCD display,clear display screen
3.Two Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
4.Relative/absolute measurement interchange at any position(ABS function)

5.Automatic power off after 5 minutes inactivity

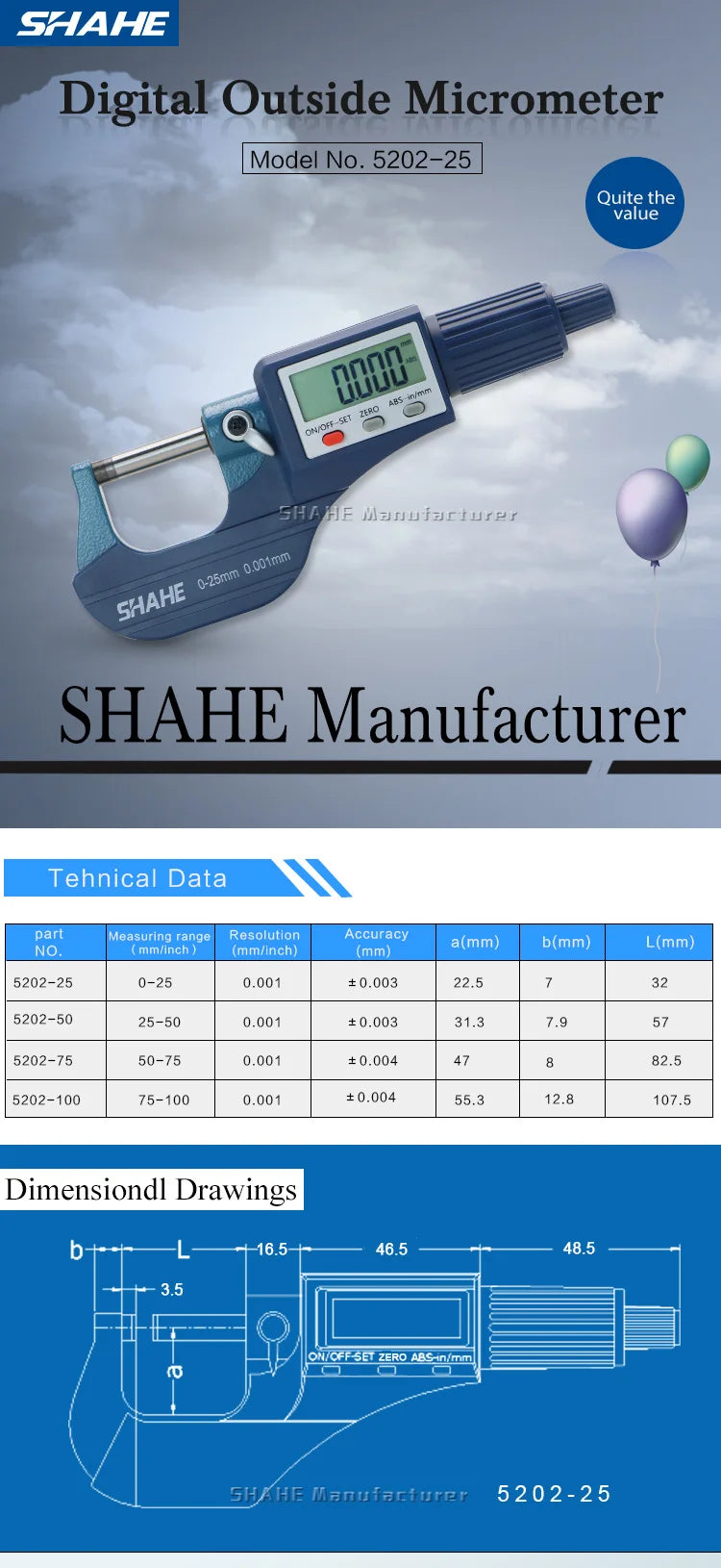

Specification

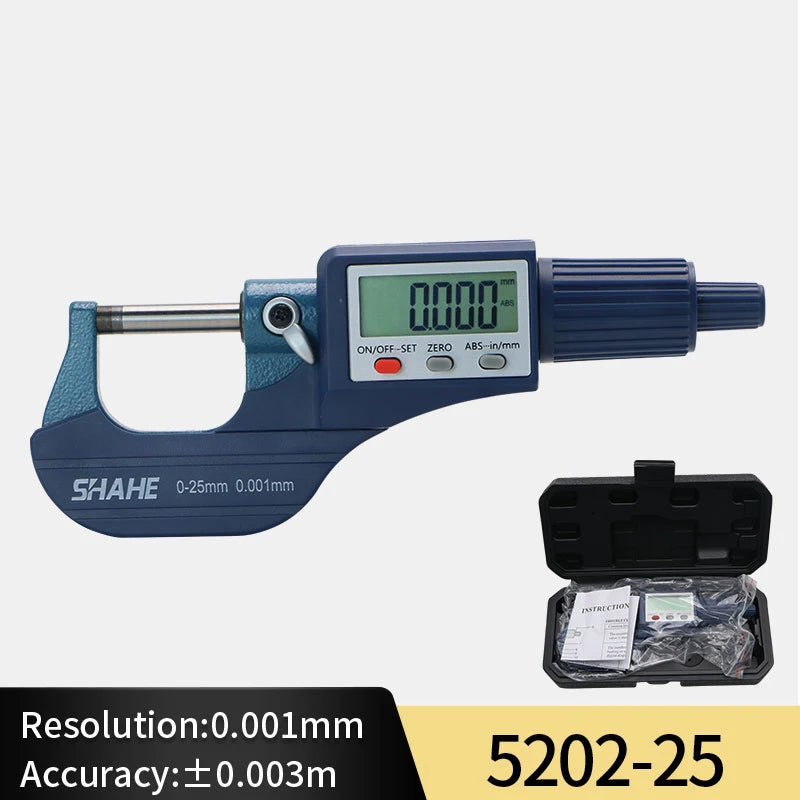

Measuring range : 0-25 mm
Resolution:0.001 mm
Accuracy:±0.003 mm

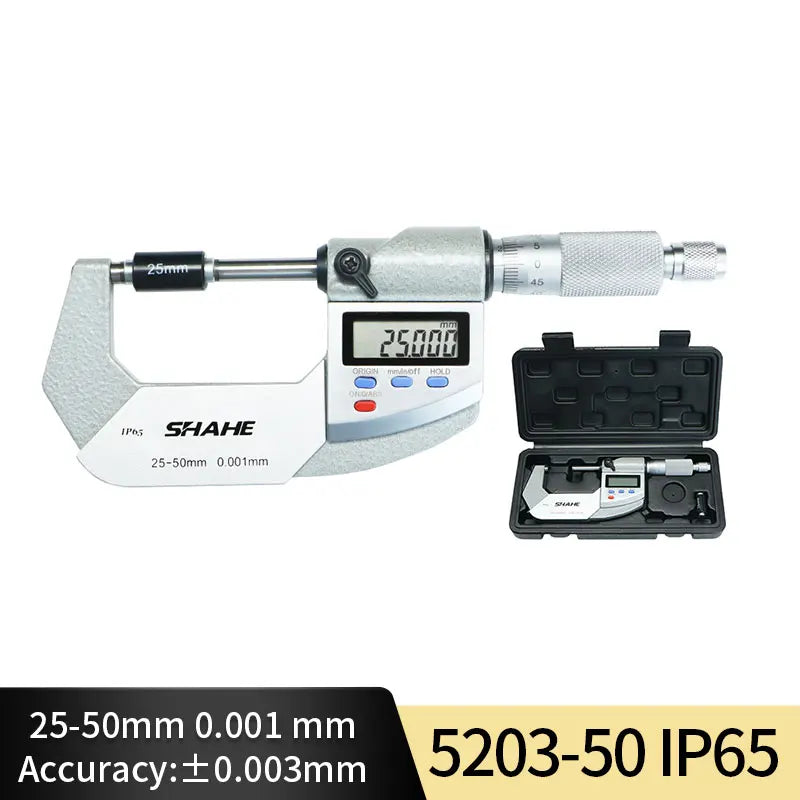

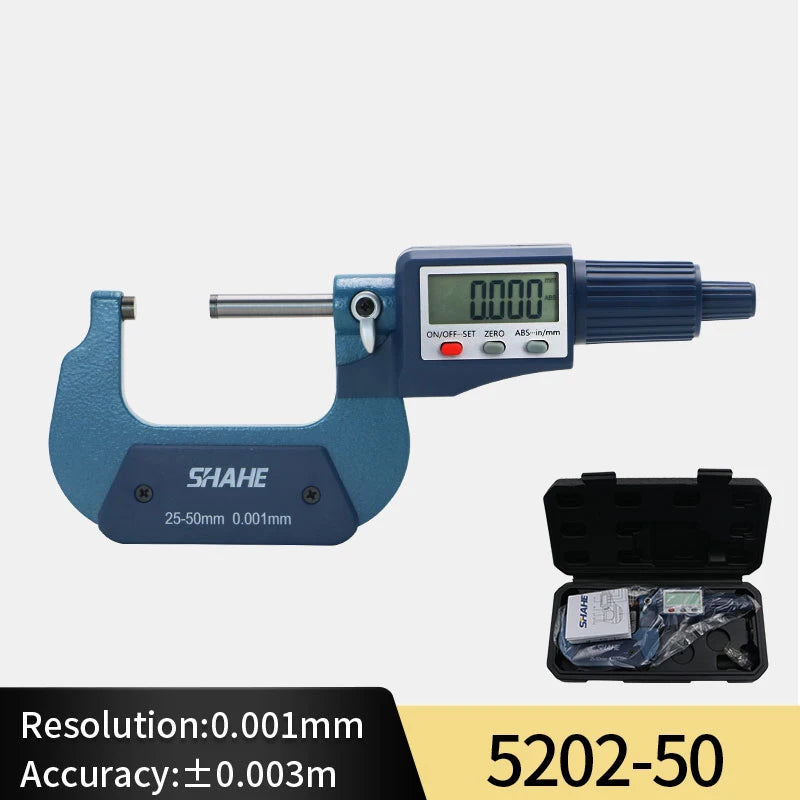

Measuring range : 25-50 mm
Resolution:0.001 mm
Accuracy:±0.003 mm

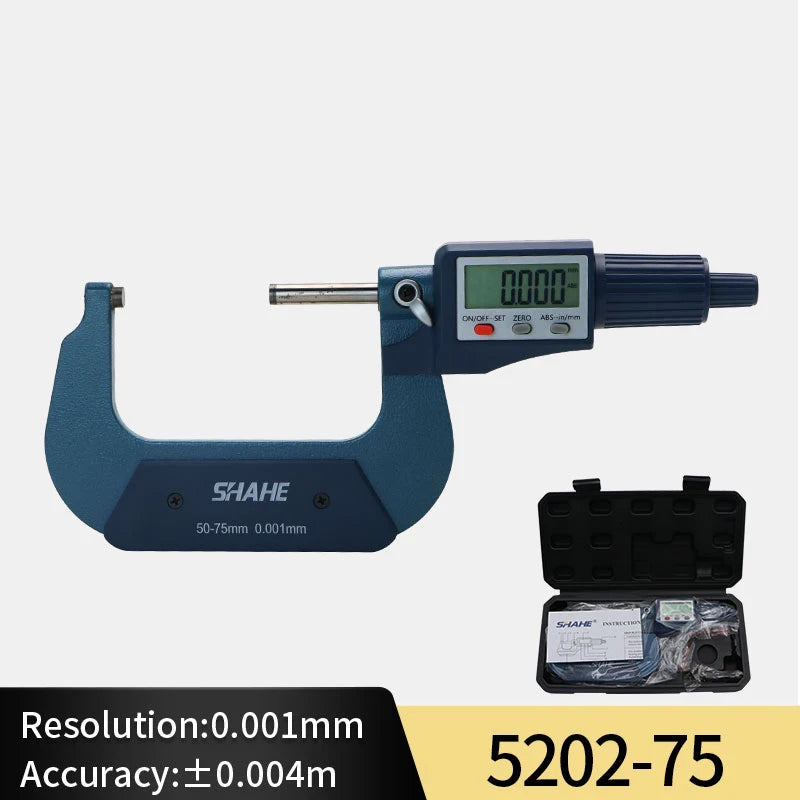

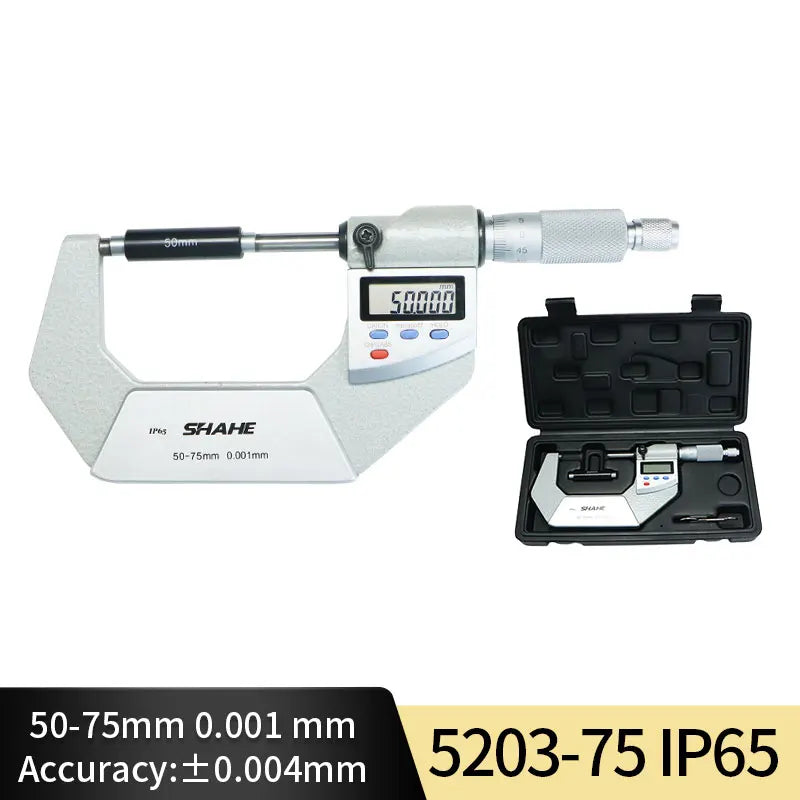

Measuring range : 50-75 mm
Resolution:0.001 mm
Accuracy:±0.004 mm

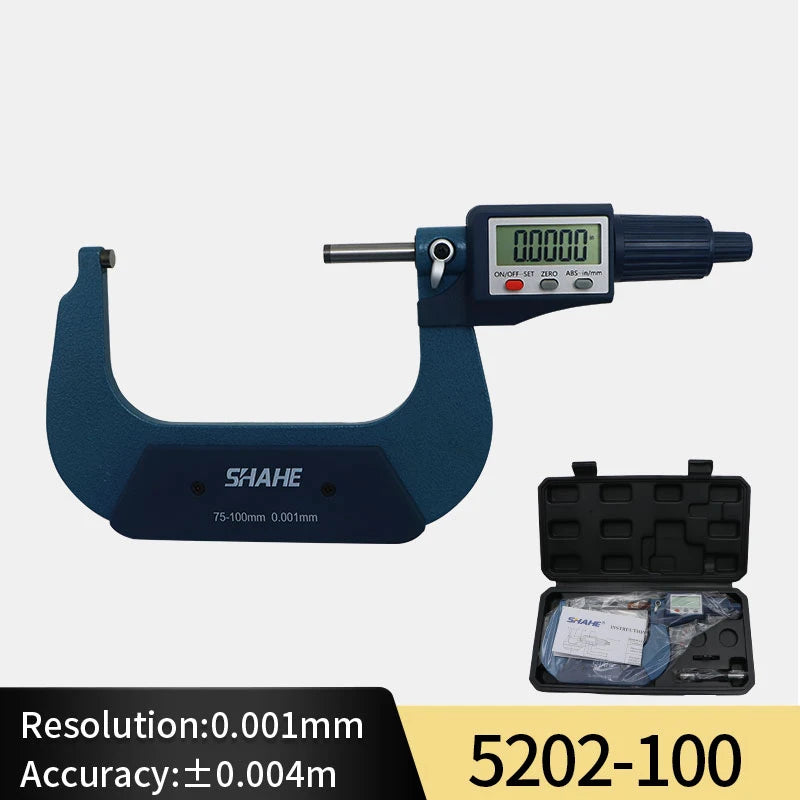

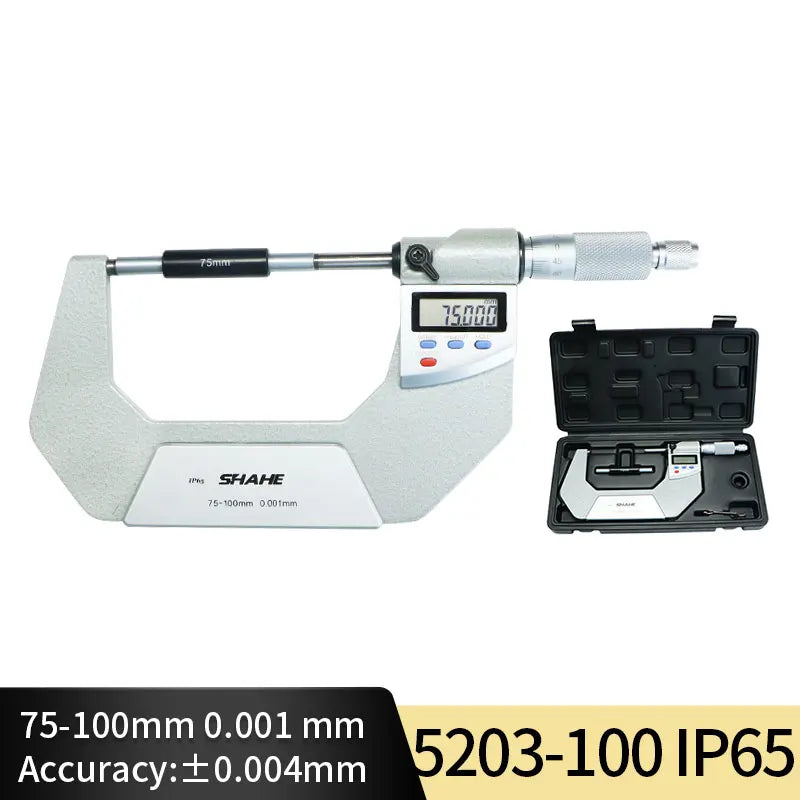

Measuring range : 75-100 mm
Resolution:0.001 mm
Accuracy:±0.004 mm

Battery: 3V CR2032
Measuring Force:5-10N
Power consumption :<=20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C

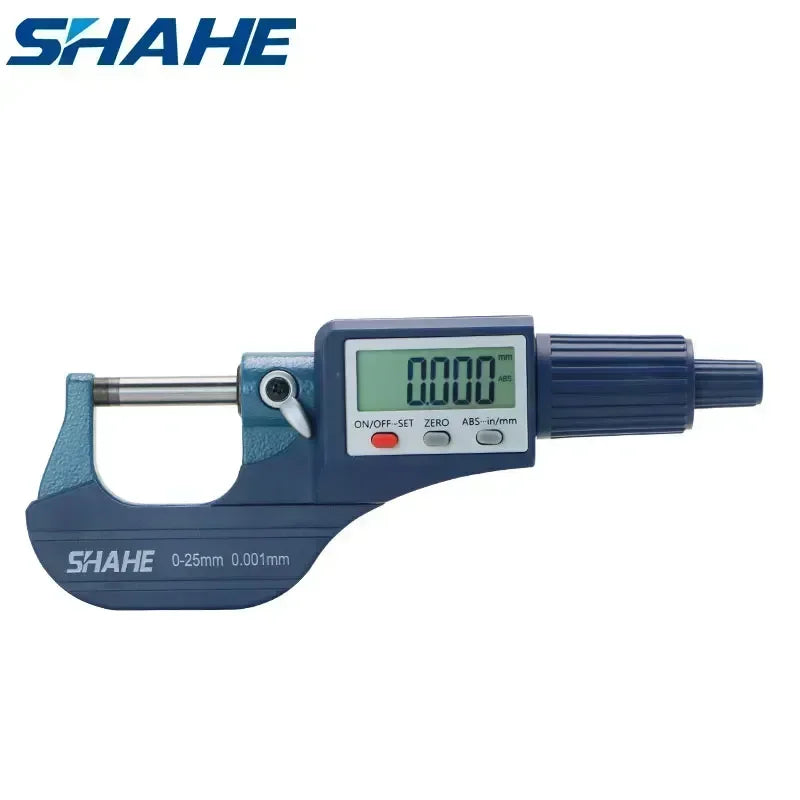

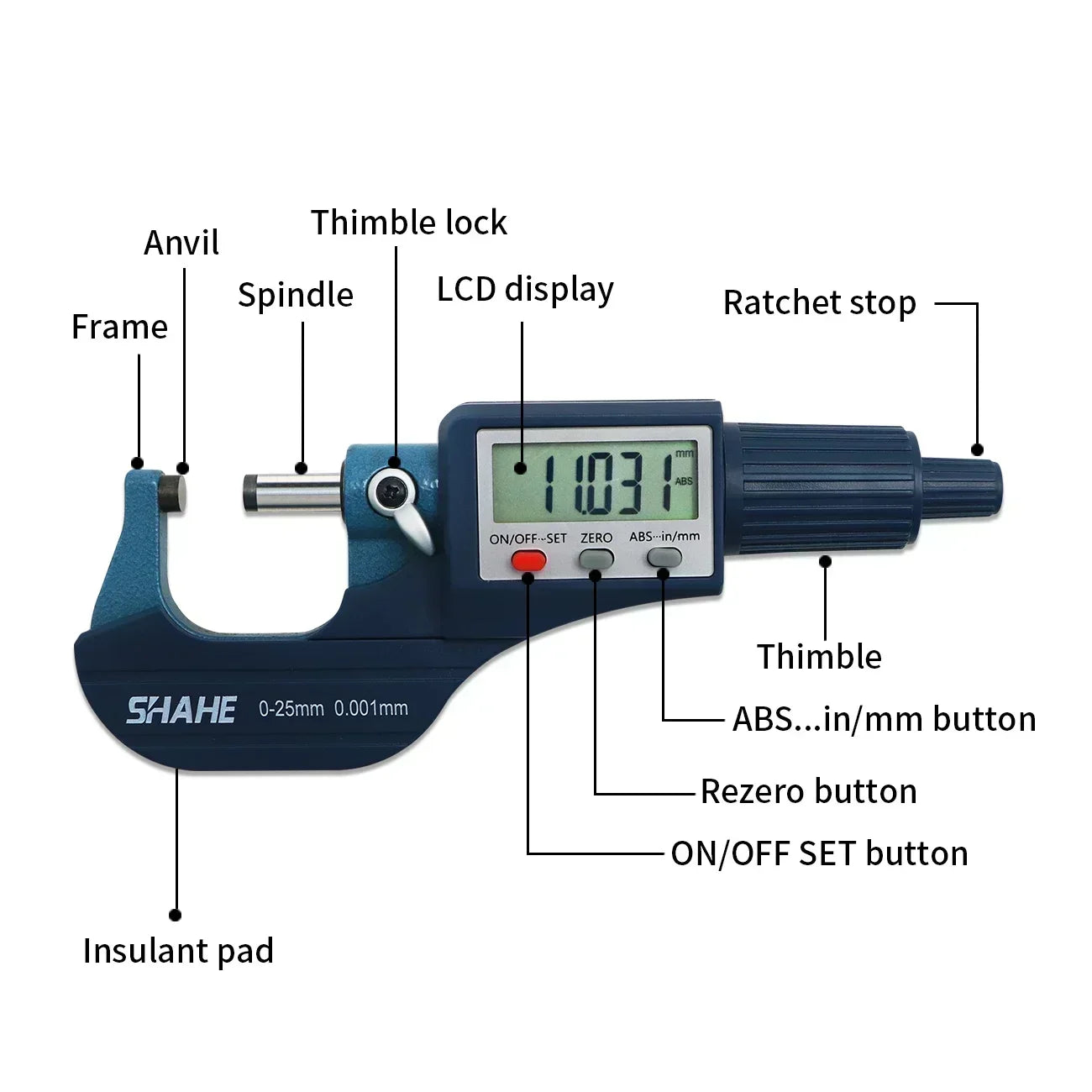

Button function

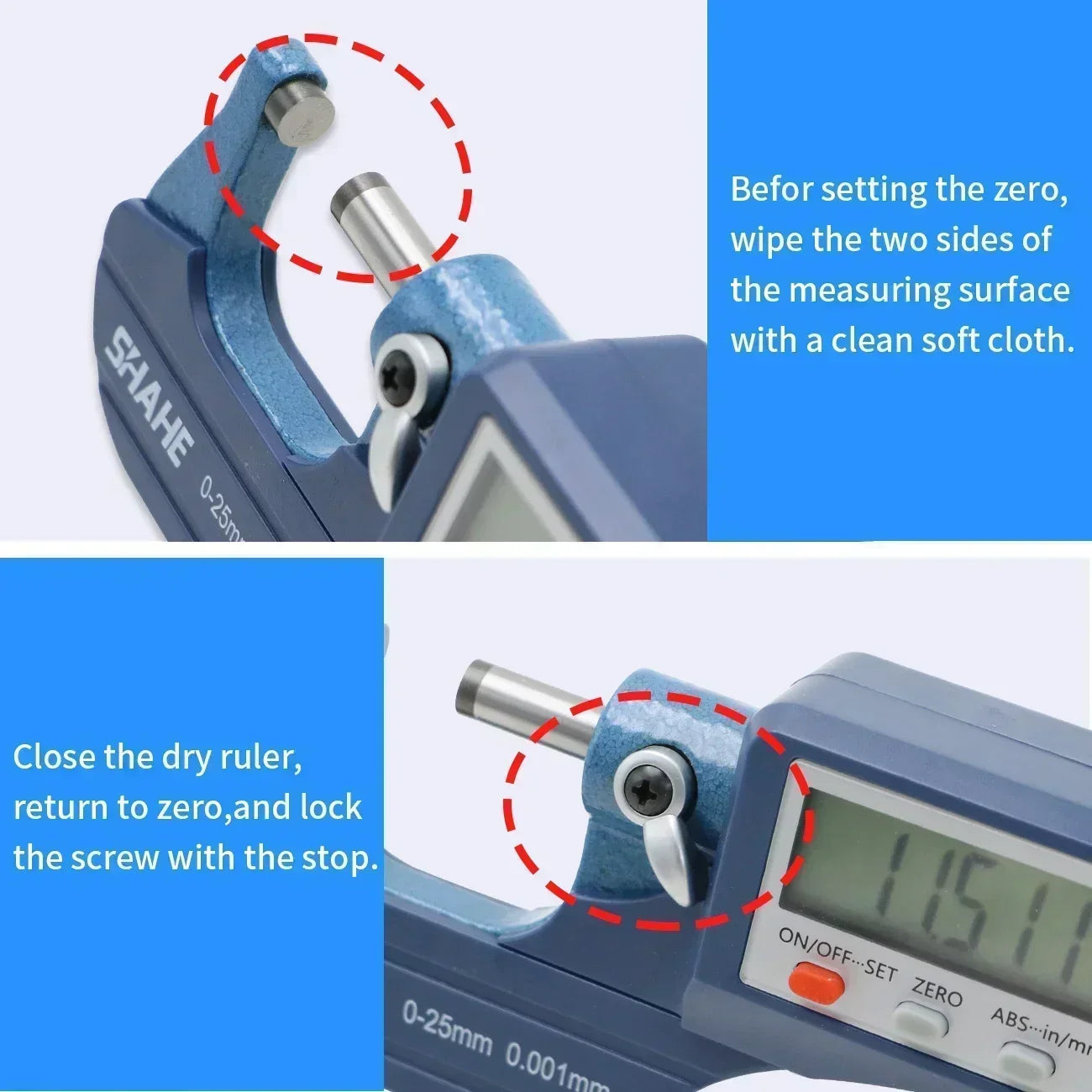

1. ON \ OFF SET: ONO FF and set button. Press the button briefly, switch the device on and off, press this button for a long time and set the zero to "0.25,50,75". "Hold down the button to alternately display several zero values Key when one of the zero values is displayed The zero value is the currently displayed value.

2. ZERO: Zero button. Press the button. The data will be used as default starting value (0.25,50,75).

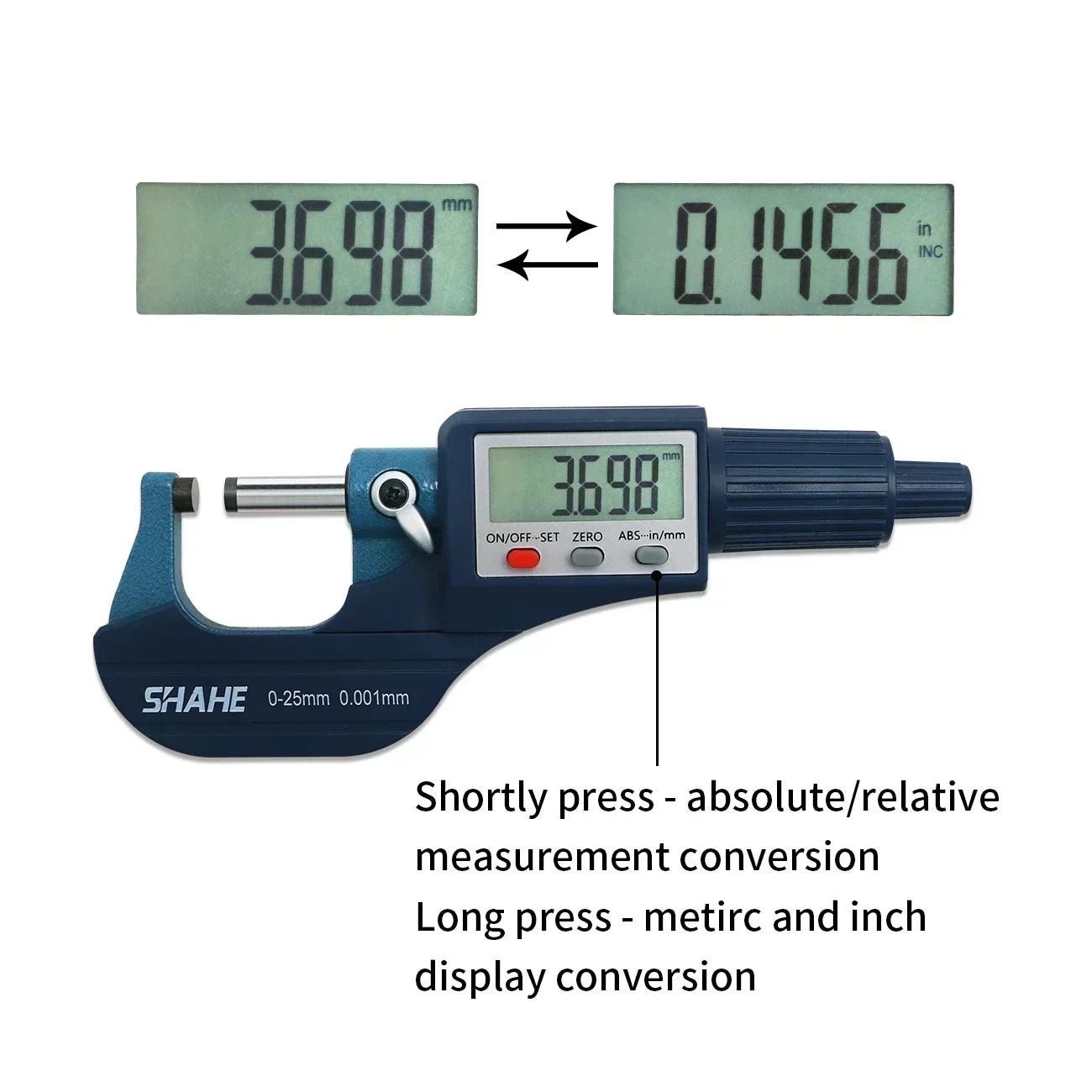

3. ABS ... in / mm: Relative and absolute scale conversion key, metric and inch conversion key. Press this button briefly to perform the absolute measurement and the relative dimension conversion "In" and small font "5", it will be displayed in inches.
