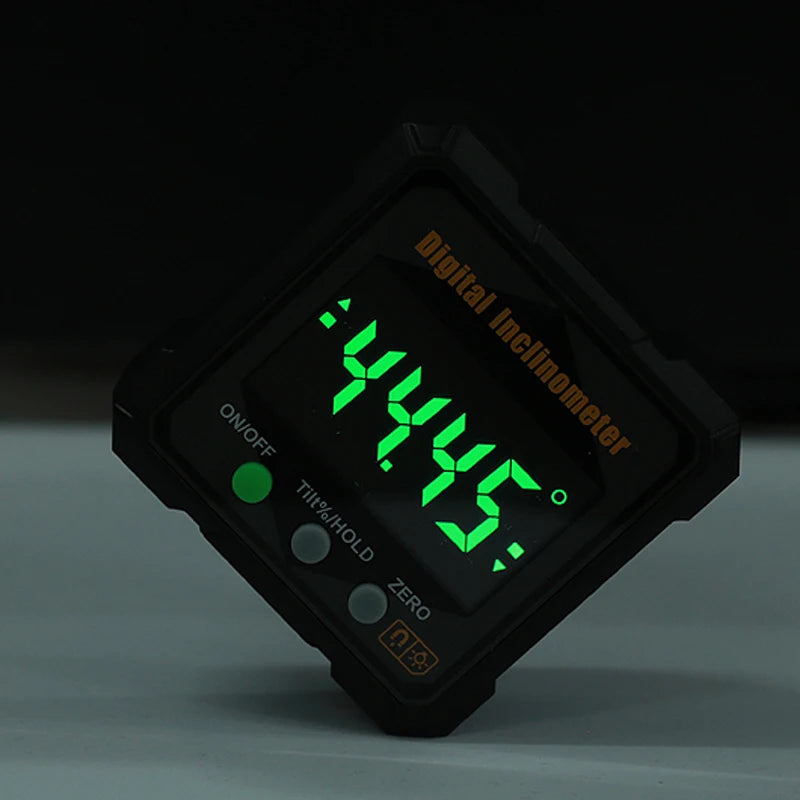

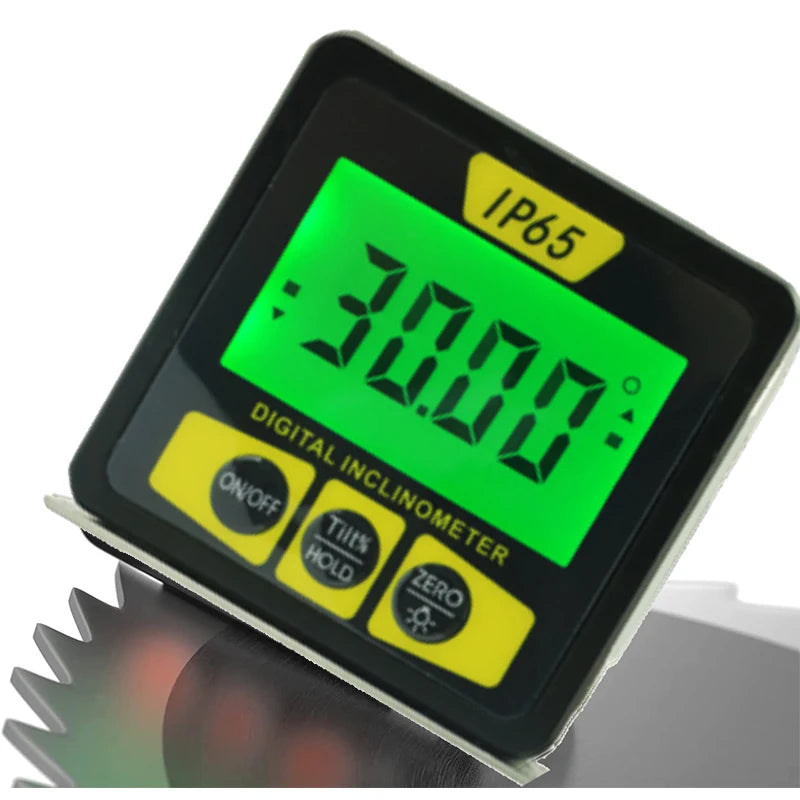

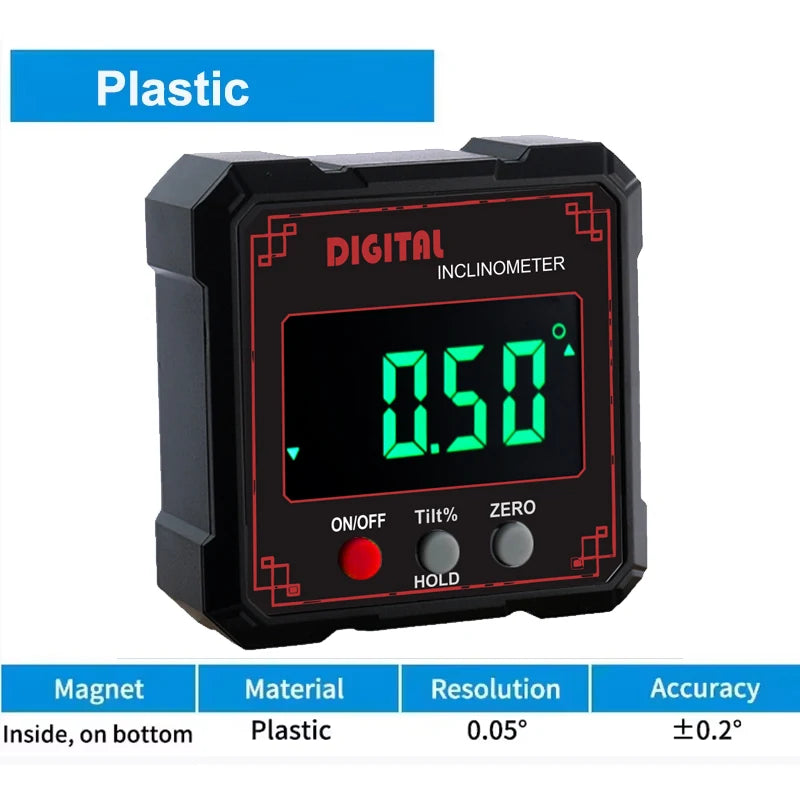

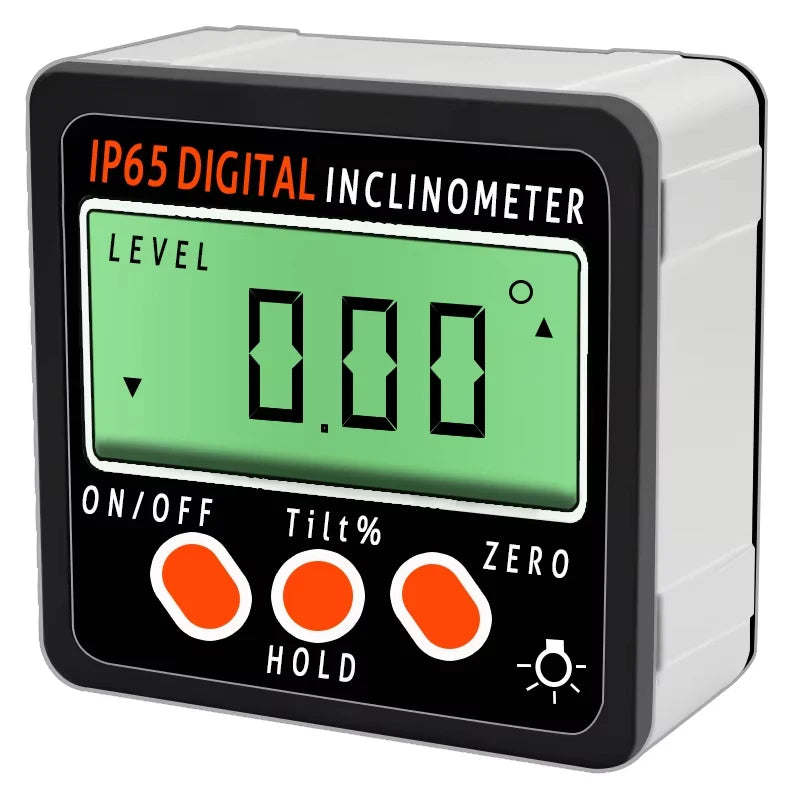

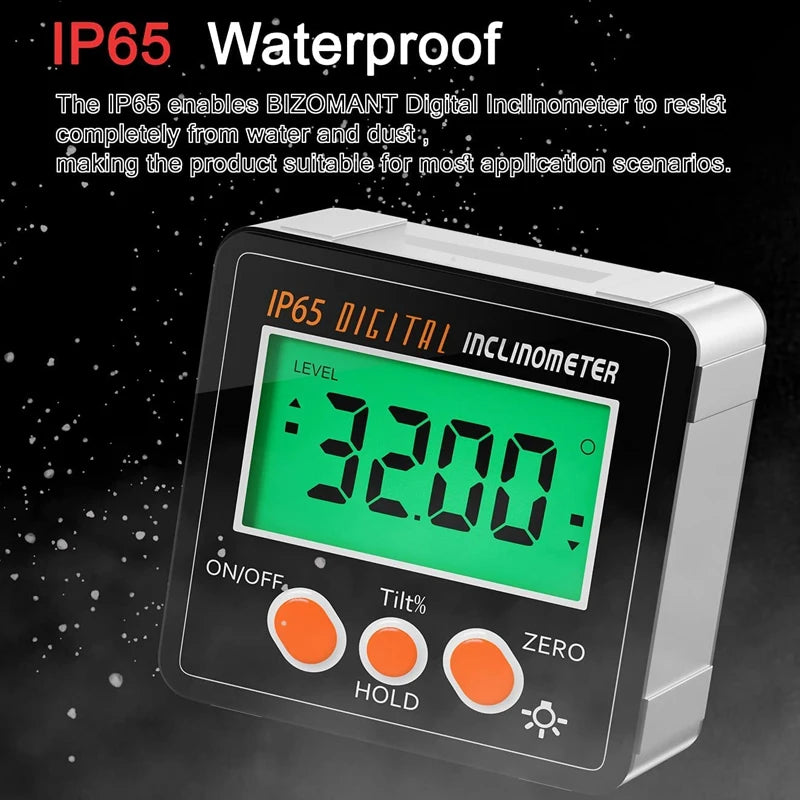

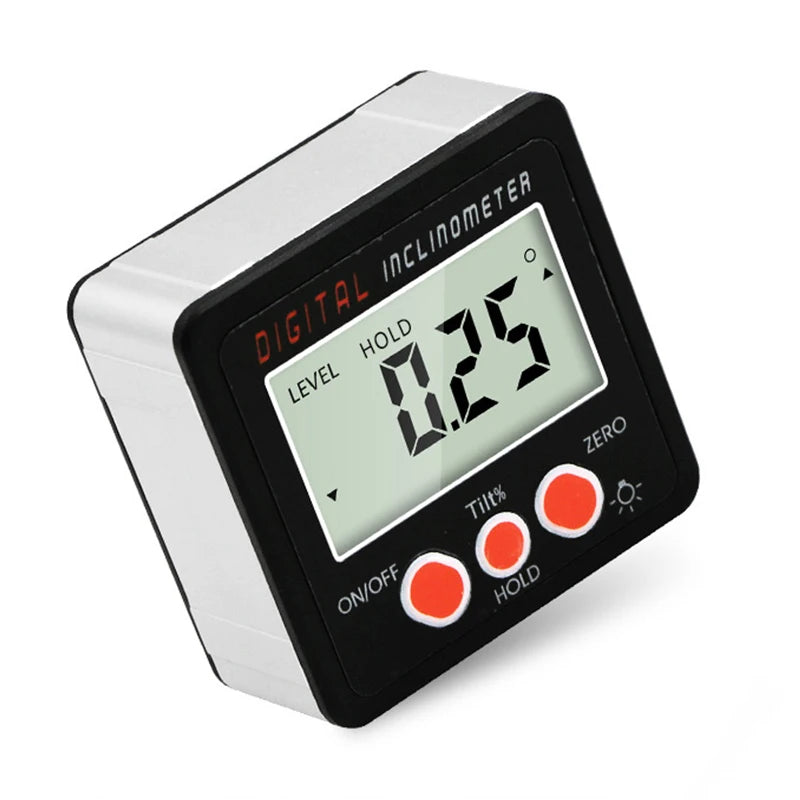

360° IP65/IP54 Digital Protractor Electronic Goniometer Inclinometer Digital Level With Magnetic Base

$76.09

$0.00 $76.09

Description

SPECIFICATIONS

Brand Name: ETOPOO

Certification: NONE

Choice: yes

High-concerned chemical: none

Model Number: DC17jW

Origin: Mainland China

Semi-finishedproduct: No

is_customized: Yes

semi_Choice: yes

Product Features

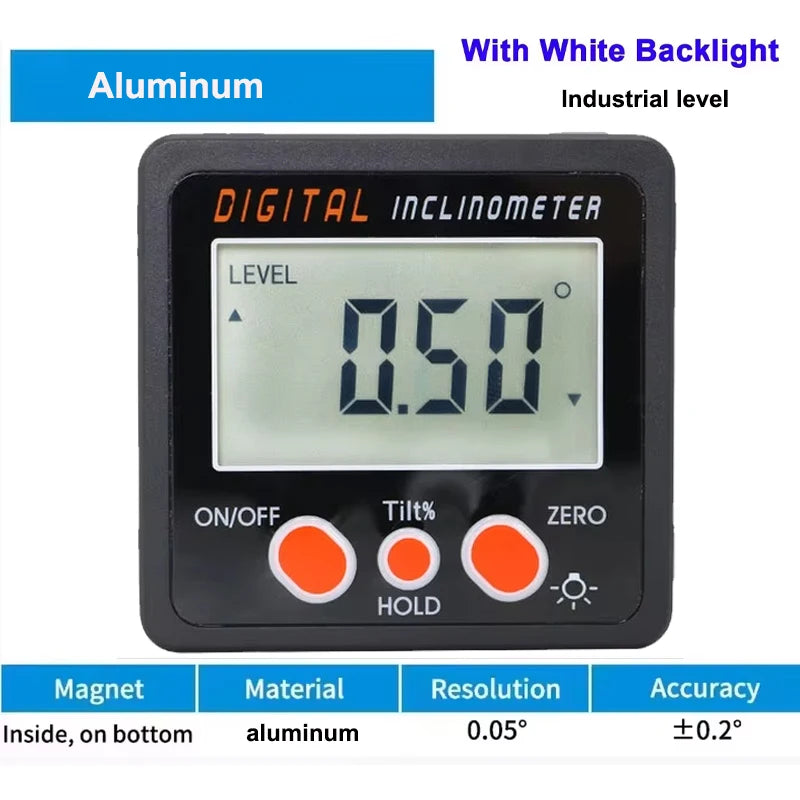

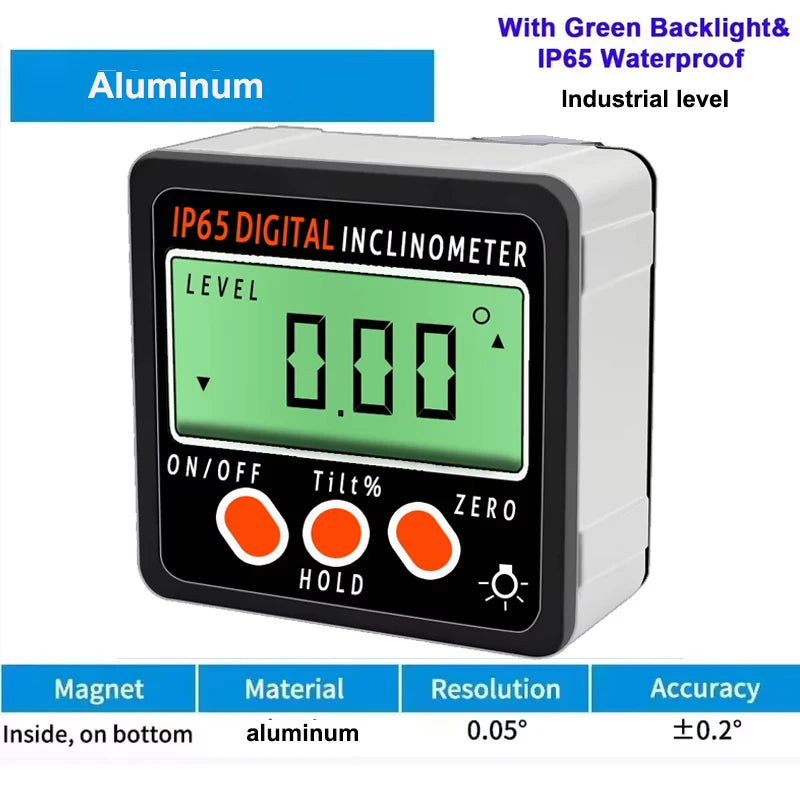

Aluminum alloy enclosure (light weight and durable)
Relative/absolute measurement interchange at any position
With 3 built-in magnets in measuring surface, which is convenient to be attached to the object measuring workpiece
Power-off automatically in 5 minutes
Portable size, convenient to co-work with other measuring tools and enlarge measuring range

Technical Parameters

Measuring range: 360°
Resolution: 0.05°
Accuracy: ±0.2°
Repeatability: 0.1°
Battery: 2pcs AA battery (not including for air shipment)
Working temperature: 0°C-40°C
Dimension: 57*57*30.5mm
With 3 diameter 10mm built-in magnets in measuring surface, which if convenient to be attached to the object measuring workpiece.
Absolute zero measurement based on the horizontal surface
Net weight:0.21kg

Operating Instructions:

Press the ''ON/OFF'' button, it turns on, and the LCD displays absolute horizontal angle. Press ''ON/OFF'' button again, it turn off.
Measurement initially displays 0.0°on the LCD at the beginning, when it displays''''on the left side ''''on the right side, it means the left side is higher and right side lower; when it displays'''' on the left side ''''on the right side, it means the left side is lower and right side higher.
Put the instrument on the horizontal stand, and press the ''ZERO'' button, the value returns to zero, and the read-out is the angle value measured angle value relatively to the horizontal stand.
Press the ''HOLD'' button, the value on the screen will be locked.

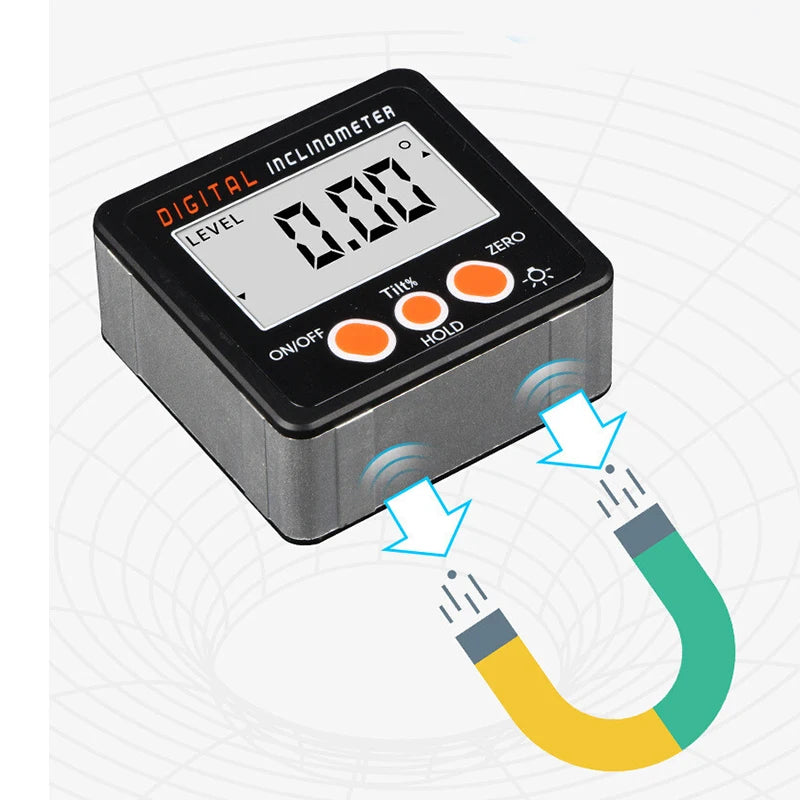

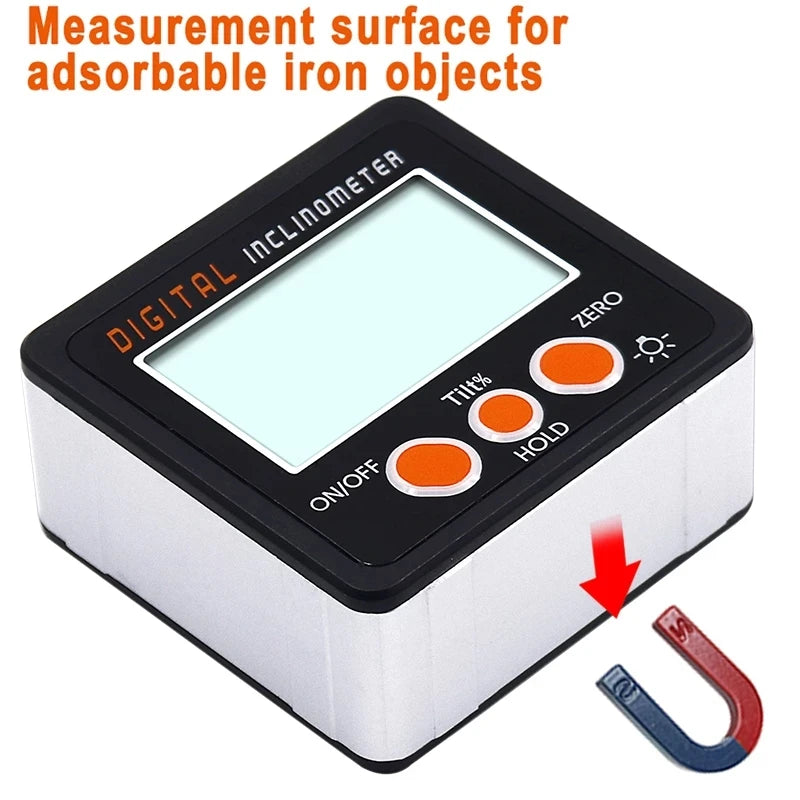

The magnets at the bottom allow the instrument to be attached onto iron material measurement object. Press the ''ZERO'' button; reset the value to proceed relative measurement

Application:

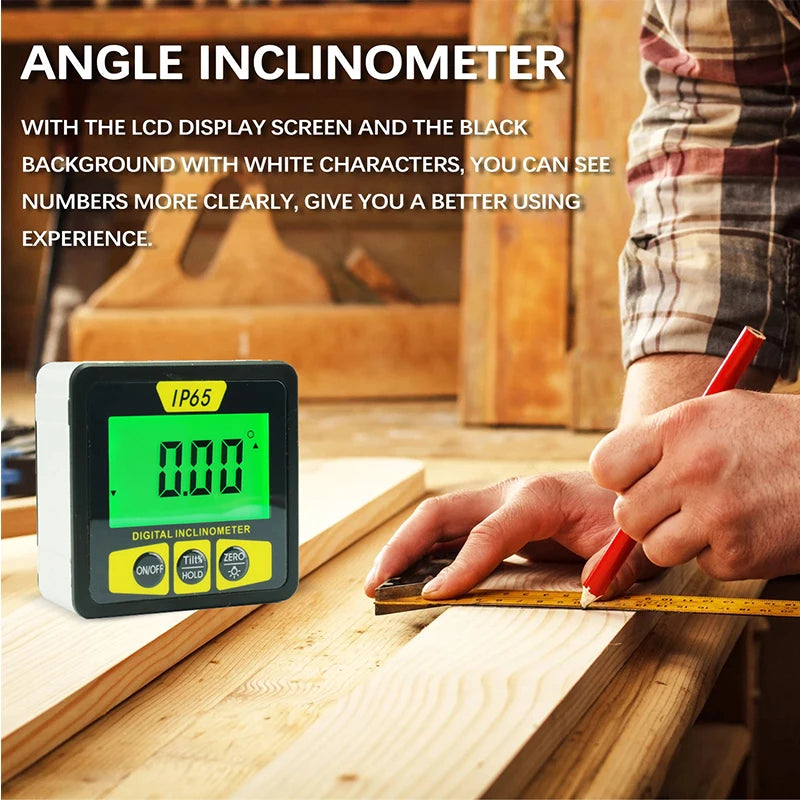

More widely application is in wood processing industry (especially in furniture manufacturing industry) for wood angle accurate cutting; auto repair industry for tiring assembling angle accurate controlling; in machining industry for machine tool working angle accurate positioning, and large vehicle arm rotation angle etc.

The parcel will be sent without battery ,the battery type is 2PCS AAA battery
(If you order from RU warehouse ,protractor will be sent with batteries)

1.Relative/absolute measurement interchange at any position;

2.Angle and slope readout conversion;

3.Data hold;

4.The display will turn off if you don't operate the device within 30 seconds,The product will automatic turn off if you don't operate it device within 3 minutes.

5.Compact and portable, wide application.

6 .built-in Strong Magnets
